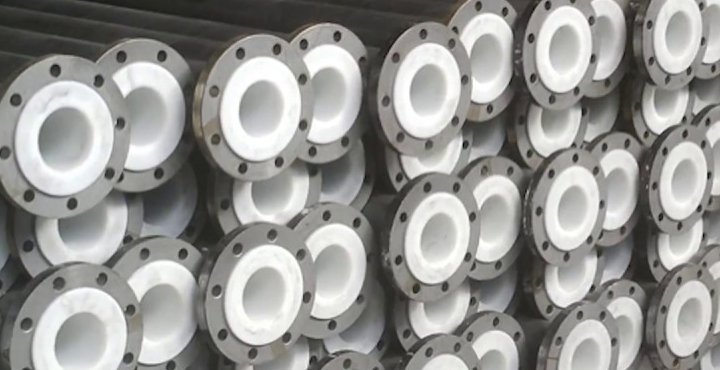

PTFE/ PP Coating Pipes & Fittings

These products are manufactured using best quality raw material, which is obtained from reliable vendors. We assure our customers that entire range is manufactured in accordance with the international quality standards.

Specification

Pipe : ASTM A 106 Grade B schedule 80 br

Flange : IS 2062 Grade B. ANSI B 16.5 ASA 150 # for drilled holesbr

Standard : Two axed flanges, loose flange available on requestbr

Lining : Pure PTFE in compliance with ASTM D 1457, white in colorbr

Lining thickness : 3 to 5 mm, exceeds the relevant ASTM F-1545 standard specsbr

Operating temperature : PTFE -29 to 260 deg. Cbr

Operating pressure : Vacuum to 6 kg/cm. sq.br

Hydrostatic pressure test : 10 kg/cm. sqbr

Air leak test : 3 kg/cm. sq.br

Spark test : 10 KV
