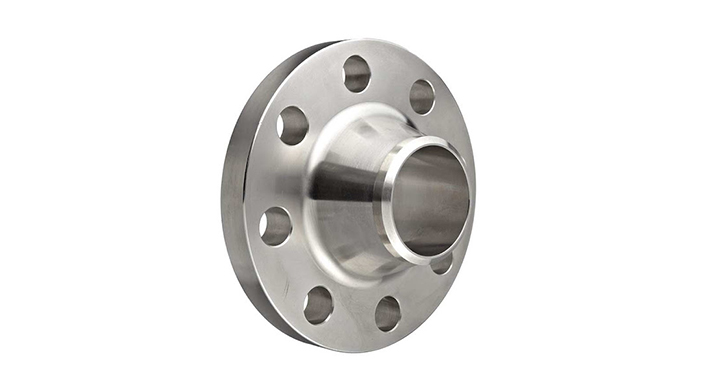

Weld Neck Flanges

The Weld Neck Flanges in India are perfect choice for extreme fluctuations of temperature and environments where there may be excess bending and handling of the flanges. This flange has the buttweld joint.

Because the inside diameter of the flange should match the inside diameter of your pipe, at the time of order it is significant to specify the schedule pipe that is being used for. It has long tapered hub and are frequently used for high pressure applications.

Specification

Stainless Steel : ASTM A 182, A 240

Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Class : 150#, 300#,400 #,600#,900#, 1500# & 2500#.

Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

Size : 1/8" NB TO 48"NB

Carbon Steel : ASTM A 105, ASTM A 181

Copper Alloys : Copper, Brass & Gunmetal

Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22, C276

Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
